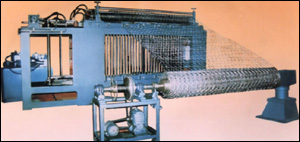

YNW Series Hydraulic Heavy Type Hexagonal Netting
Machine |
| |
| |
| We offer this series machines with PLC auto control
and hydraulic driving, especially for weaving of
extra sizes and extra wire diameter. |
|
|
| |
|
MODEL
|
MESH SIZE
|
MAX.WIRE DIA
|
MAX.WIDTH
|
PRODUCING RATE
|
MOTOR POWER
|
| YNW60X80-24 |
60X80mm |
ø2.2-2.8mm |
2.4m |
1.5m/min |
18.5kw |
| YNW80X100-24 |
80X100mm |
ø2.2-3.5mm |
2.4m |
2m/min |
22kw |
| YNW60X80-46 |
60X80mm |
ø2.2-2.8mm |
4.6m |
1.5m/min |
30kw |
| YNW80X100-42 |
80X100mm |
ø2.2X3.5mm |
4.2m |
2m/min |
30kw |
|
| |
| |
|
|
|
